Fancoil
thin plug in filter
fancoil

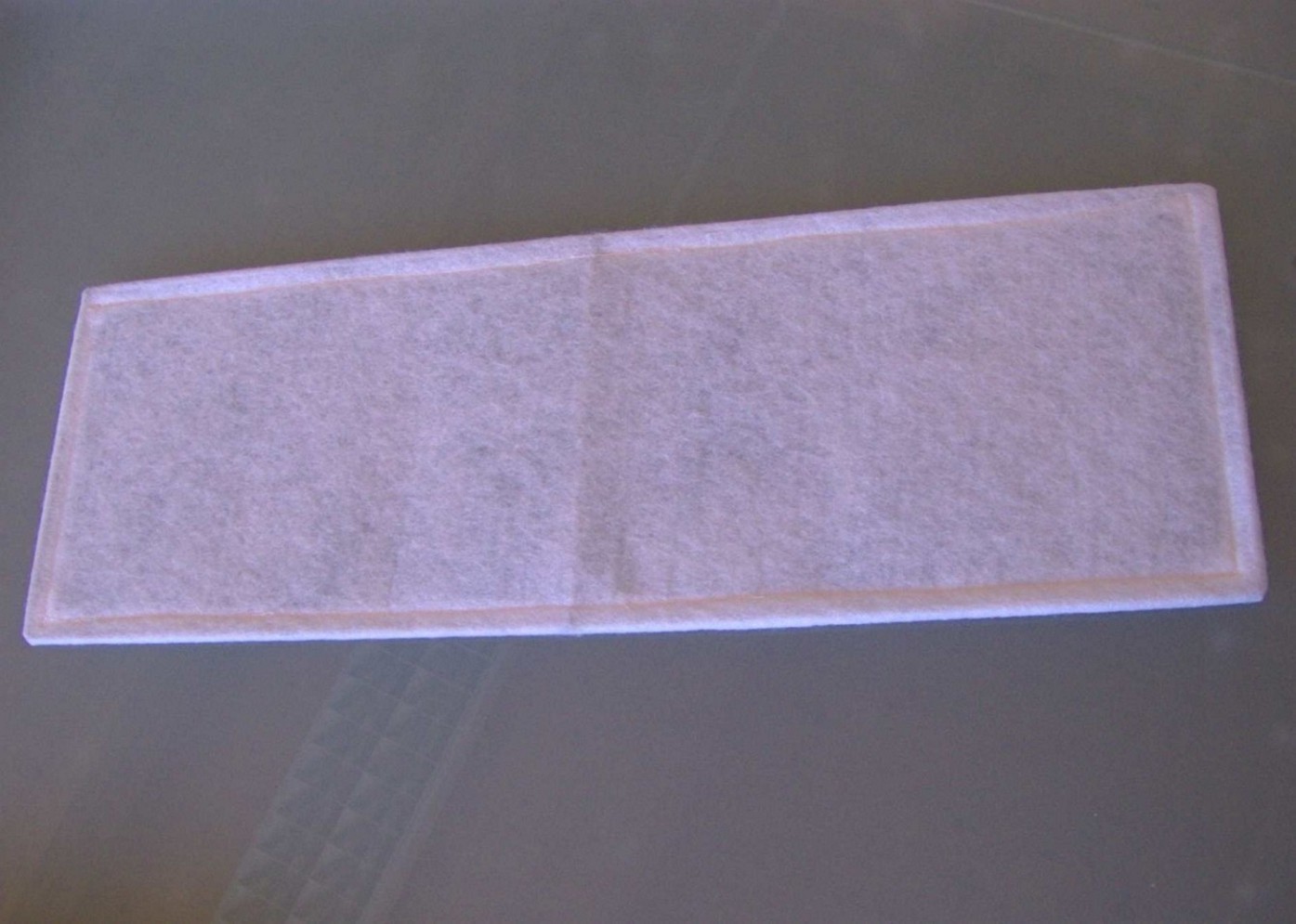

One way fancoil synthetik:
Progressively condensed, synthetic, thermally bounded mesh with high mechanical stability in the fibre composite. Close sewed in in St-shape frames.
The unique fleece construction protects high filltration efficiencies with high dust accumulator ability.
The one-layer filters are available in all coarse and fine dust filter classes (G2-F9).

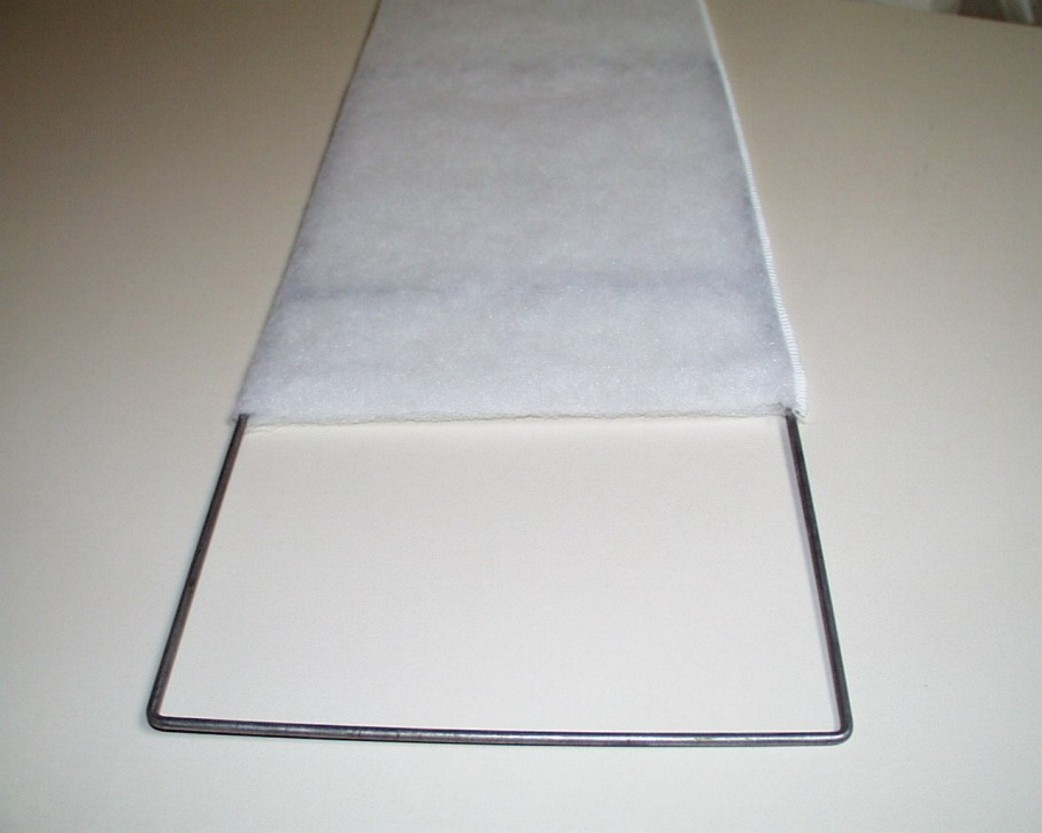

Filter Exchange System:
Progressively condensed, synthetic, thermally bounded mesh with high mechanical stability in the fibre composite. Close sewed in in St-shape frames.
The unique fleece construction brings high filltration efficiencies with high dust accumulator ability. Two-layer changing pocket with envelope seal. Only the filter media has to be renewed.
The filters are available in all coarse and fine dust filter classes.
One way fancoil with micro mesh net:
Precisely defined Micro mesh net of synthetic, close sewed in in St-shape frames.
To clean ideally by the smooth surface.
The Fancoil is available in white with 100ym filltration efficiency or with basis black net.
More products with micro-mesh net „filtex®HF100“: Bikini filter bikininet, filter cell netline
Application:
As a prefilter in cramped space relations in air handling units, compact units, building equipment HVACR (heating, ventilation, air conditioning, refrigeration), etc. Primarily as a coarse dust filter.
Besides, the change system is conserving the environment, because only the medium is to be exchanged.
Types:
| One way synthetik: | |
| FCE | Complete synthetik, Class G2-F9 |
| Exchange system: | |
| FC | Frame with filter complete |
| FCG | St frame |
| FCS | Spare part filter |
| Micro mesh net: | |

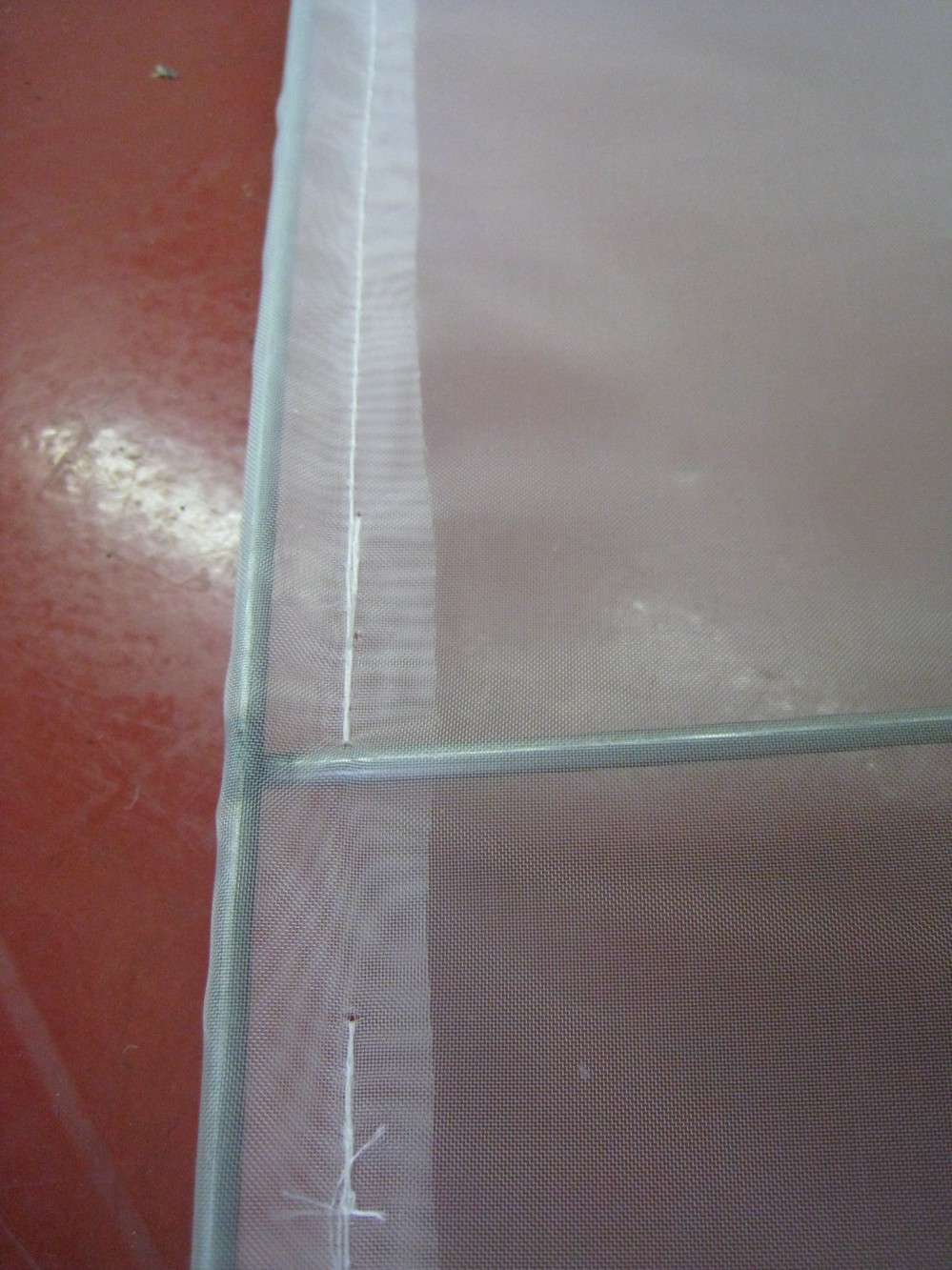

| FCE HF100 | Complete with 100ym synthetiknet white |

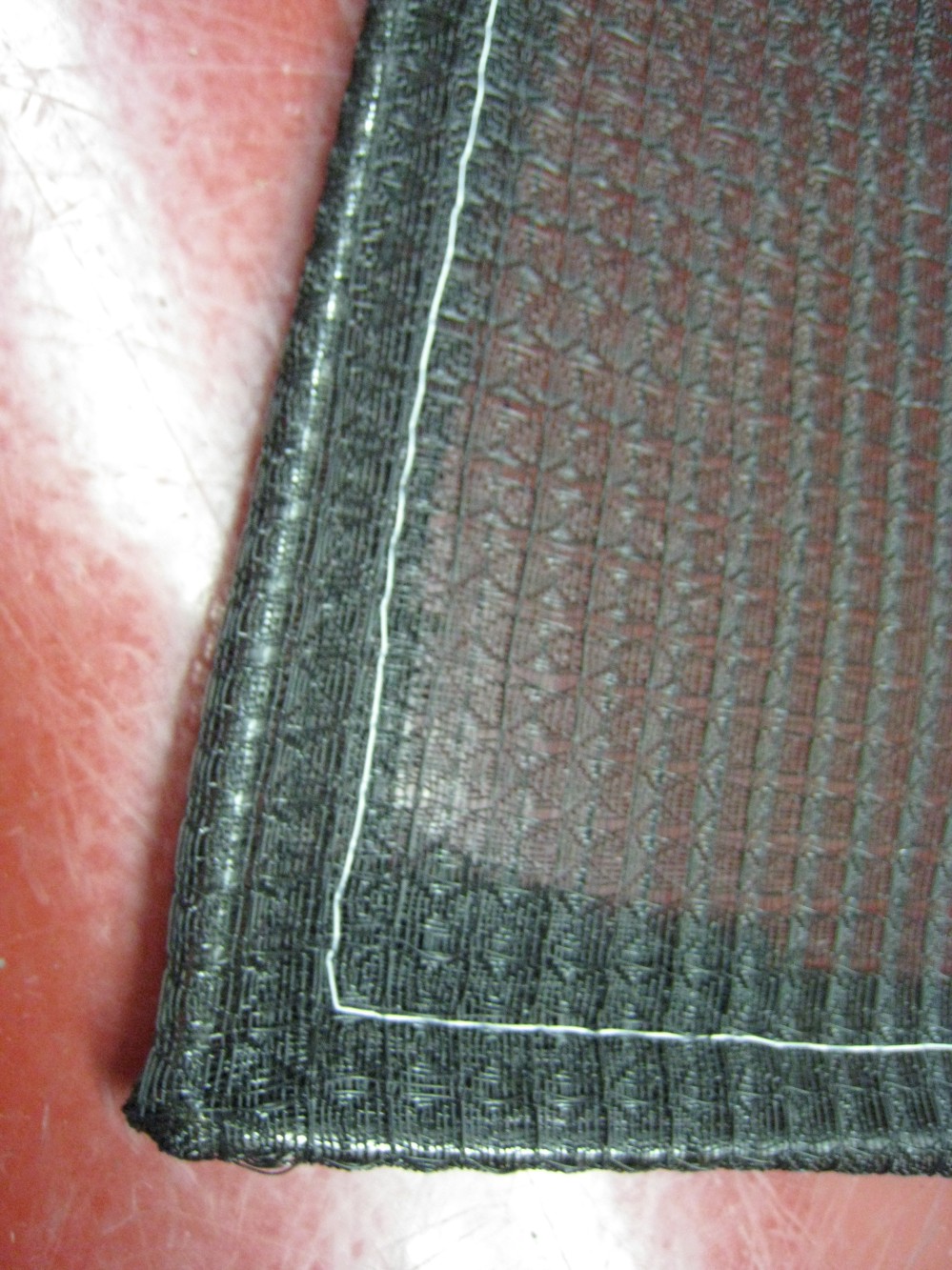

| FCE HF | Complete with approx. 350ym synthetiknet black |
Charakteristics:
- One way filter or filter exchange system
- Filterclasses EN779-2002 (G2 - F9)
- Synthetik
- Micro mesh net
- All standard dimensions, special dimensions on request
- Technical data see TECHDOC or on request
