Compact filter
ripac
The filter medium is a fibre glass/synthetik paper combination. To reach a big surface the medium is narrow pleated with a spezial distance holder technology.

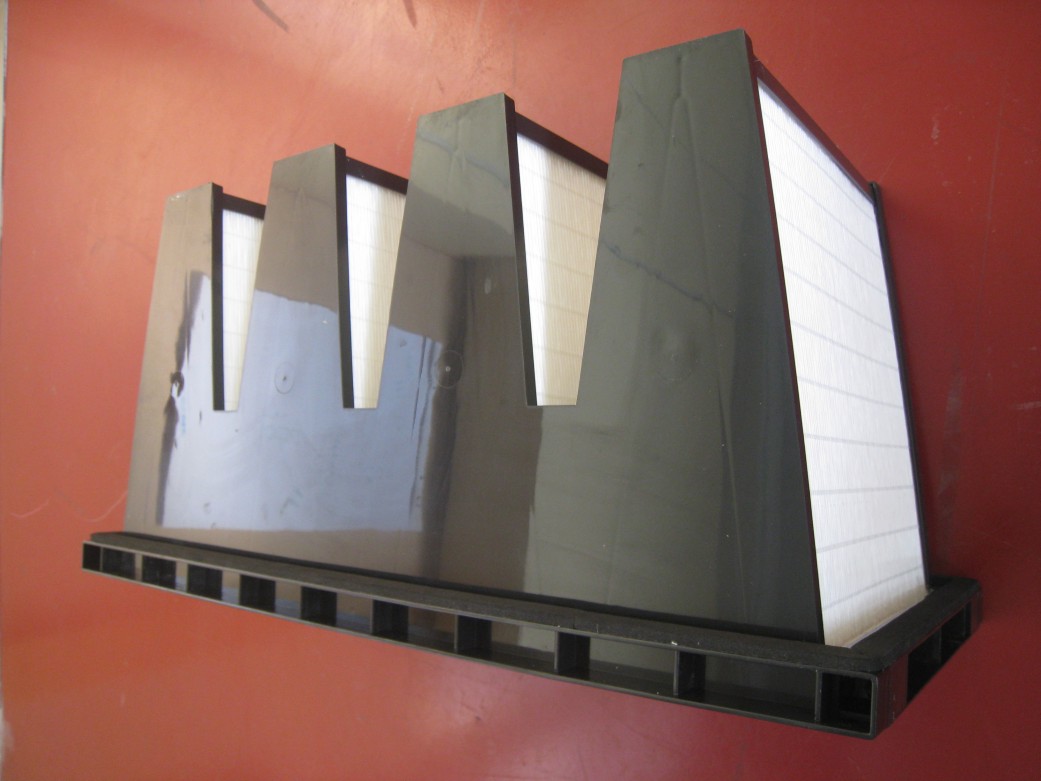

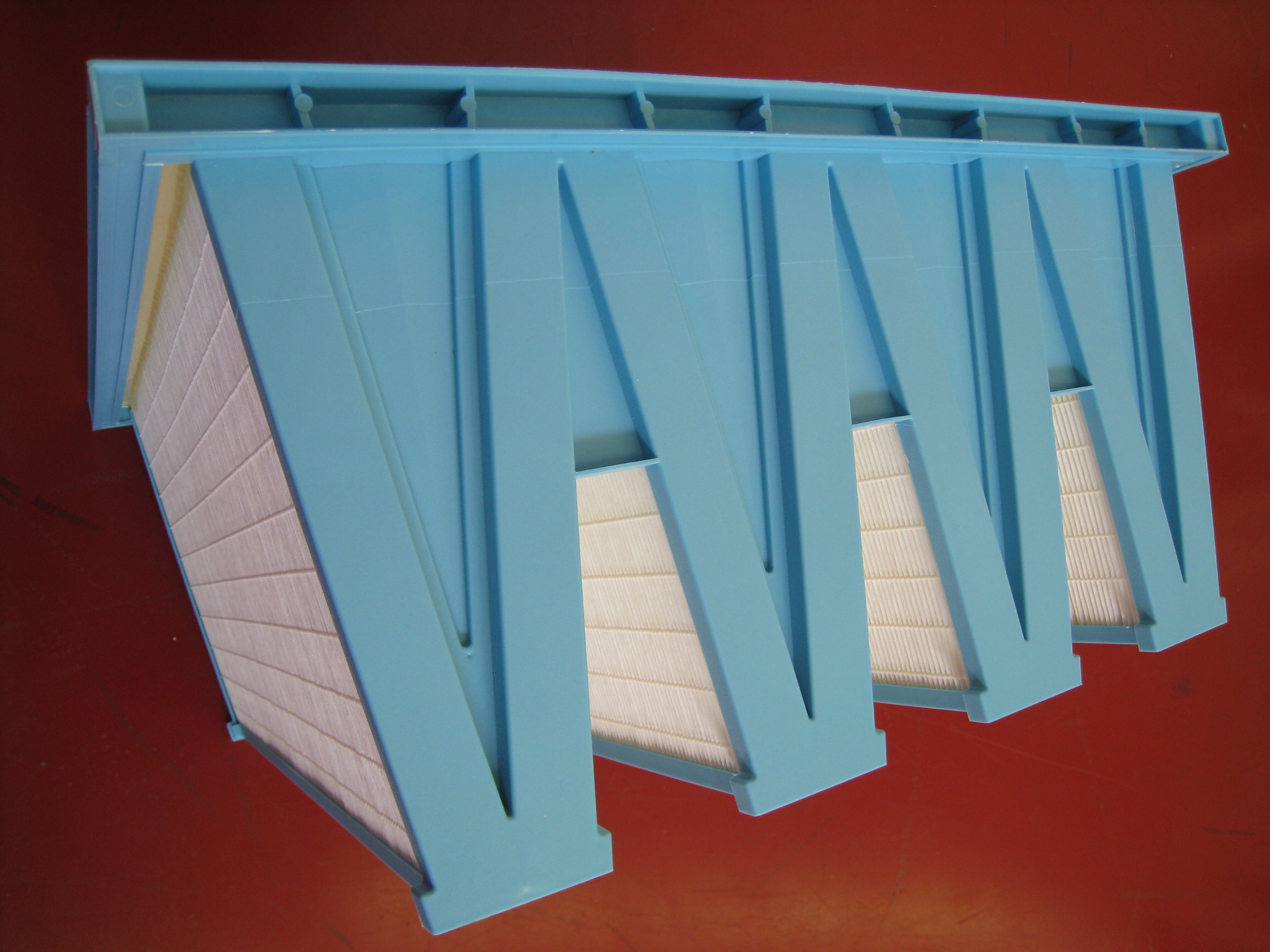

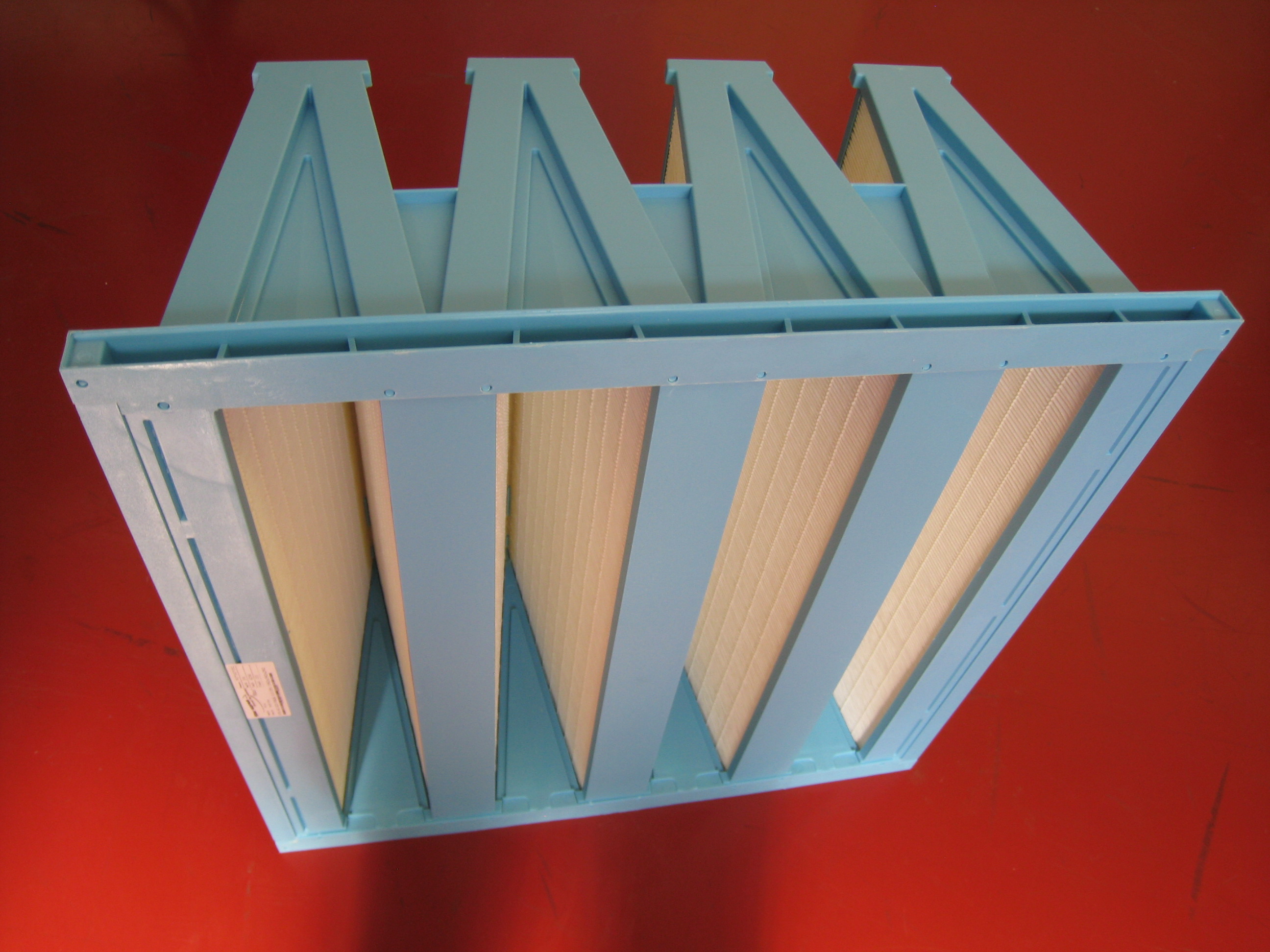

The pleat-packages named „filtex®RIPAC“ are fixed in a tight V-shape casing made of plastic material.
The filter is complet free of metal.

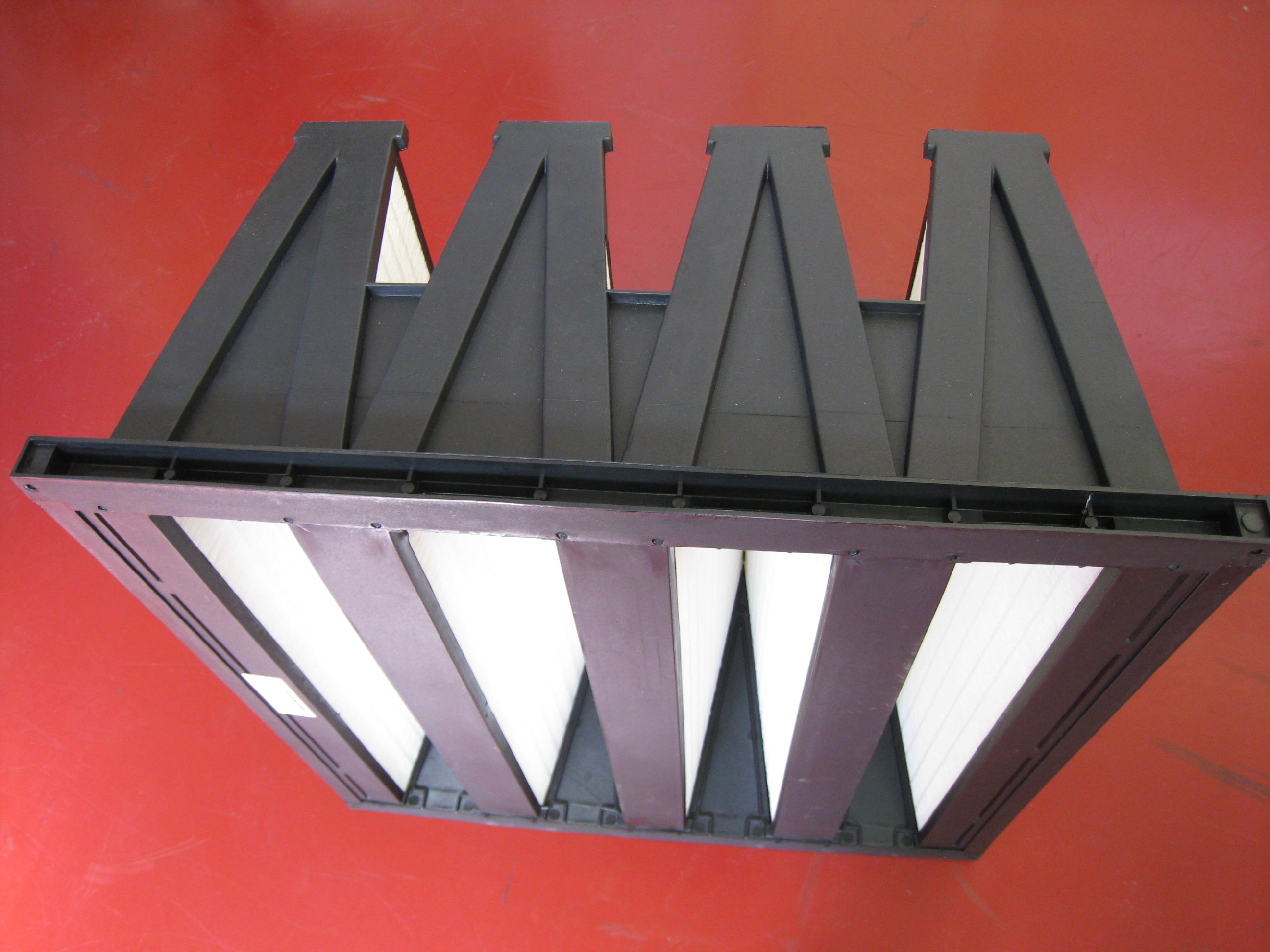

The pleat-packages named „filtex®RIPAC T.“ is temperature resistant up to 120°C.
Application range:
As a high grade filter in all kinds of air conditioners or exhaust air devices. (turbines). Especially for applications with high pressure drop or high air flow rates and high temperatures. The filter can be fixed in the same frames like pocket filters (frame thickness is the same 25mm). The alternative to high grade pocket filters provides high energy efficiency and improved filtration efficiency at the same time.
Recommended as a pre filter in applications where a final HEPA filter follows. (Clean rooms)
The execution for high temperature resistance can be used for temperatures up to 120°C.
For applications with very high flow rates choose execution "high flow" type FKK. For standard applications execution "flow" type FKKB.
Types - Filter classes - Medium:
| FKKB ..."base" | class M5-H13 | filtex®RIPAC |
| FKKS ..."flow" | class M5-H13 | filtex®RIPAC |
| FKK ..."high flow" ☼ | class M5-H13 | filtex®RIPAC |
| FKK ..."high flow" ☼ high temperature resistant | class M5-H13 | filtex®RIPAC T. |
| FKKE ..."extra high flow" ☼ | class F7- F9 | filtex®RIPAC |
☼ Energy Saver
Charakteristics:
- Filter medium filtex® RIPAC Narrow Pleat package
- Filter medium filtex® RIPAC T. Narrow Pleat package high temperature resistant
- Executions flow und high flow
- More than 30% higher air volume rates than pocket filters (higher filter efficiency)
- High energy efficiency
- Casing in plastic material
- All standard dimensions, special dimensions on request
- Technical data see TECHDOC or on request
